Strong collaboration, precise control
We focused on field conditions and operator precision throughout the design:
- MRS Electronic: E1-certified control units with automotive-grade reliability at the core of the system
- Makersan: high-quality Hall-effect joysticks for precise motion control
- Akon Hydraulics: the hydraulic foundation with superior valve technology
What sets the EHR solution apart
Flexible software that saves time in the field:
- 5 languages: Turkish, English, Russian, German, Italian
- Instant connection via PCAN-USB without installation

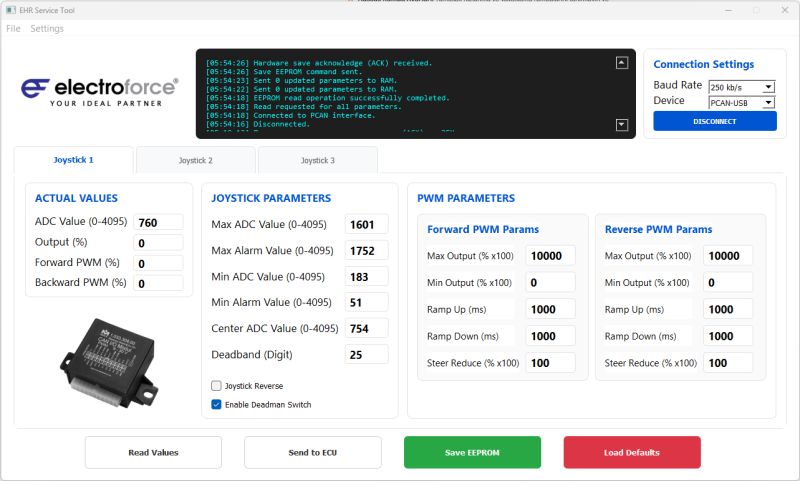

- Real-time monitoring of calibration parameters, ADC values and PWM signals
- Precise acceleration and deceleration ramps with visual feedback
- Secure storage of all changes in the device’s EEPROM
Flexible platform
With a wide 9-32 V operating range and 2 A proportional PWM control, the system can easily be adapted to various C or CODESYS-based projects. We thank Akon Hydraulics for trusting our software experience, and the MRS Electronic and Makersan families for their high-quality hardware support.
Field connection with PCAN-USB
The PCAN-USB adapter enables simple connection to CAN networks; its compact plastic casing suits mobile applications. The package is supplied with the CAN monitor PCAN-View for Windows and the PCAN-Basic programming interface. The opto-decoupled version provides galvanic isolation between the PC and the CAN side.
Related solutions and products
- For Hall-effect joysticks, see the Makersan product page.
- If you want to drive proportional valves from a PLC’s 0-10V analog output, our PLC proportional hydraulic valve driver solution takes a similar approach.
Frequently asked questions
Which languages does the PC interface support?
The PC interface supports 5 languages: Turkish, English, Russian, German and Italian.
Does the PC connection need any installation in the field?
No. The connection is made instantly via PCAN-USB without installation, and calibration parameters, ADC values and PWM signals can be tracked live in the interface.
Are the settings stored permanently in the device?
Yes. All changes are saved securely to the device’s EEPROM memory, and acceleration and deceleration ramps are set with real-time visual feedback.
