Highlights
- Operating voltage: 9-32 V
- 1 x CAN interface
- 32 bit processor
- Ingress protection: up to IP6K8
- Temperature: -20 … +60°C
Programming and use
- Programming with MRS Applics Studio
Technical Specifications
| Interfaces | |
|---|---|
| CAN interface(s) | 1 |
| LIN interface(s) | 1 |
| Mechanical Properties | |
| IP rating | up to IP6K8 |
| Housing material | ABS housing |
| Dimensions | 73.5 × 70 × 23 mm |
| Programming | |
| Programming software | MRS Applics Studio |
| General Information | |
| Temperature range | -20 … +60°C |
| Operating voltage | 9-32 V |
| Current consumption | 87 mA |
| Quiescent current (12V) | 0.6 mA |
| Quiescent current (24V) | 0.7 mA |
| Processor architecture | 32 bit |
Order options
| 1.157.300.0100 | IP6K8, M12 connector, Wake-up possibility via CAN Bus |
| 1.157.302.0120 | LIN interface with Master/Slave, IP6K8, M12 connector, Wake-up possibility via CAN Bus or LIN Bus |
Display, buttons and ambient light

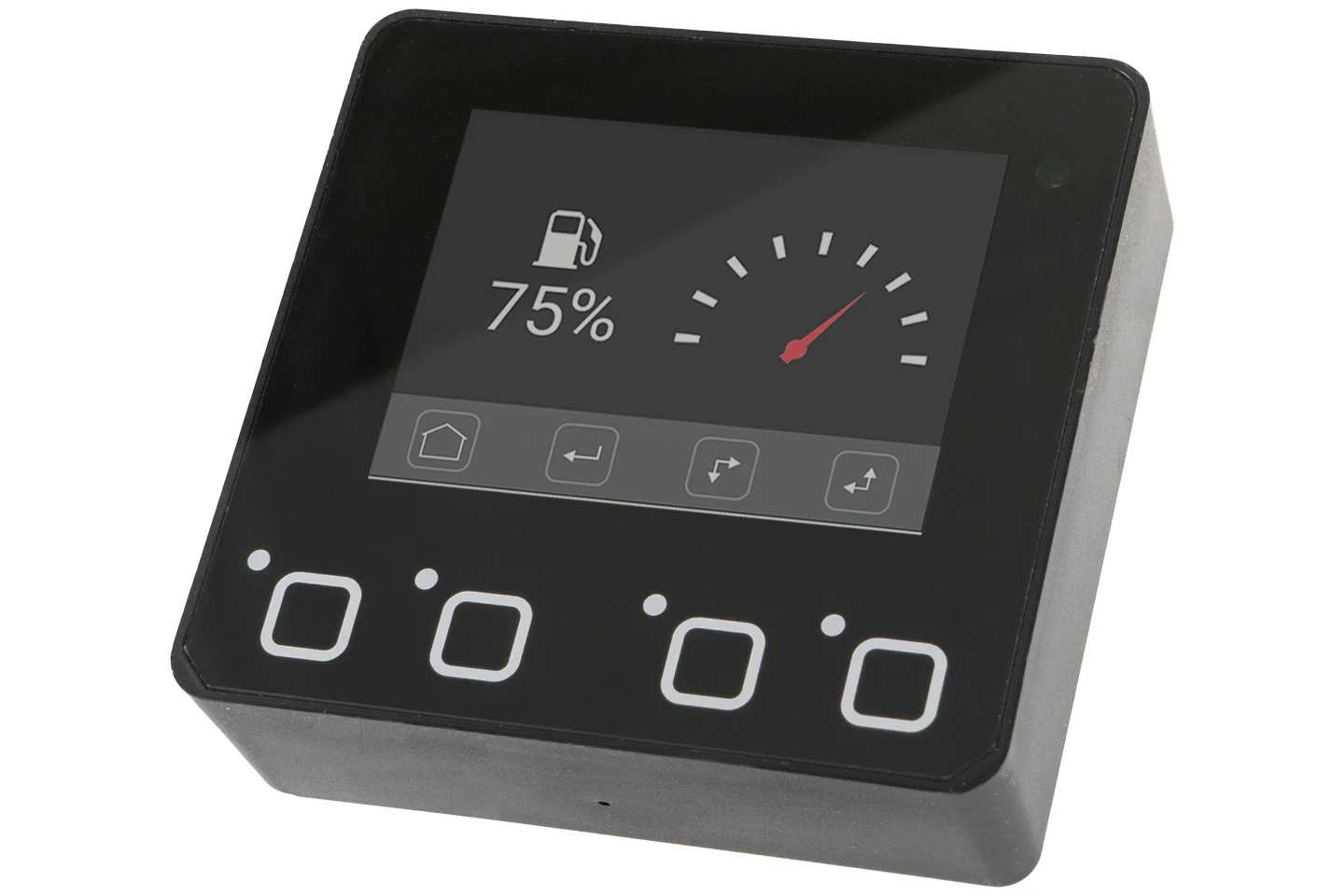

According to the datasheet, the MConn Mini has a 2.4-inch IPS colour TFT display with 320×240 resolution, 500 cd/m² brightness and a viewing angle of up to 80°. The housing is black ABS with a PMMA front screen and the unit weighs 100 g. The 4 capacitive buttons are configurable and give LED and acoustic feedback; the display also has a switchable backlight controlled by an ambient light sensor and an acoustic signal.
Communication, supply and protection
- The CAN interface is CAN 2.0 A/B (ISO 11898-2 and 11898-5) and CAN-FD capable.
- Overvoltage protection starts at about 33 V, and the unit has reverse polarity protection.
- Temperature: operation -20 … +60 °C, storage -30 … +80 °C. Environmental protection according to ISO 20653 is IP 6K8.
- In the datasheet pin assignment of the NMEA plug variant, pin 4 is CAN high, pin 5 is CAN low and pin 1 is the optional LIN bus.
Programming and accessories
The MConn Mini is programmed with MRS Applics Studio. The accessories list in the datasheet includes the Applics Studio Bundle (1.100.200.00), a Mini Display cable harness for programming (503838), a PCAN-USB interface (105358) and an NMEA 2000 connector kit (302392).
Use in projects
The MConn Mini is used in our CAN-based tank level monitoring solution for fire trucks, together with the MRS Micro PLC CAN 4 ANA controller and 2 pressure sensors: CAN tank level monitoring for fire trucks. See MRS Micro PLC CAN 4 ANA for the controller, and MRS Electronic and Displays and HMI units for other products.
EHR Elektronik develops application software for MRS Electronic control units.
DOWNLOADS
MRS MConn Mini – Data sheet (PDF)Frequently asked questions
Can the button functions be changed?
Yes. You can freely define the functions of the 4 capacitive buttons; according to the datasheet they are configurable and give LED and acoustic feedback.
Is there a version with a LIN interface?
Yes. Order option 1.157.302.0120 offers a LIN interface that can be selected as Master or Slave; the connector and the IP6K8 protection class are listed in the order table.
Can it be used outside the driver’s cab?
Yes. The product can be used in a wide range of applications, including as a display outside the driver’s cab; its environmental protection according to ISO 20653 is IP 6K8.
What is the MConn Mini programmed with?
With MRS Applics Studio. It is programmed according to your requirements; what the display shows depends on the application.
